The ANGAD Drone Series

The ANGAD drone series is a series of miro palm-sized drones with day/night capabilities, designed for secure anti-terror house entry operations and surveillance purposes for the INDIAN ARMED FORCES. Perfect for unmanned scanning of apartments without risking the life of commandos.

​

Available Versions: v1, v2, and v3.

Some features are specific to versions v2 and v3 only.

​

>> Features Include:

​

• Palm-sized. (All versions)

• Weight including battery:

  • v1: Sub 250g category.​

  • v2: 350g.

  • v3: 400g.

• Diagonal Size:​

  • v1: 10cm.​

  • v2 and v3: 18cm.

• Continuous Flight Time on a single charge:

  • v1: 6-7 minutes.​

  • v2 and v3: 30 minutes.

• Foldable Propellers:​

  • v1: No.​

  • v2 and v3: Yes.

• Battery Technology:

  • v1: Li-Po.​

  • v2 and v3: Custom-made Li-Ion battery pack.

• Camera System:

  • ​All versions: On-board day/night color camera with auto-switching and sensitivity as low as 0.0001 Lux.

  • All versions: Optional onboard thermal camera also available with sensitivity as low as 50mK/40mK/30mK.

• Video System:

  • v1: Live video transmission up to 1Km away.

  • v2 and v3: Live video transmission up to 10Km away.

• Audio System:

  • v1 and v2: Not Available.​

  • v3: Live audio transmission up to 10Km away.

• Control signals Immunity to 2.4GHz jammers:

  • v1: Optional.​

  • v2 and v3: Yes.

• Absolute silent car mode:

  • v1 and v2: Not available.

  • v3: Available with 4 hours of operation time.

• Fully GPS-capable flight modes. (All versions)​​

• Flyable in GPS denied environments also. (All versions)

• Flyable in mild rain also. (All versions)

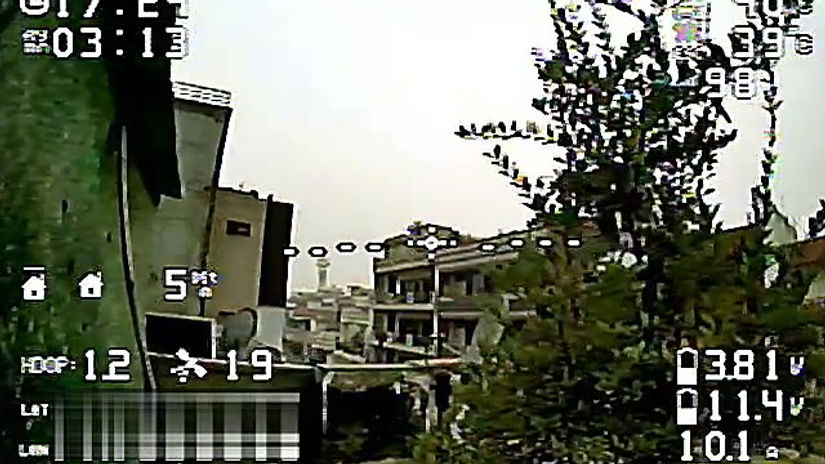

• All flight parameters are embedded in live video for monitoring. (All versions)

• Powered with state-of-the-art drone avionics systems with 11DOF sensor fusion algorithms. (All versions)

• GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS satellite constellation tracking for accurate position estimation. (All versions)​

• Developed in INDIA.

​​​

>> Practical use scenario:

Commandos can use the drone for unmanned scanning of an apartment, building, or a field where anti-terror operations need to be carried out. In this way, fast and secure scanning can be done quickly without risking any precious life and strategy can be made much more quickly and effectively.

​

>> Trademark Info:

Trademark applications have already been filed (and Accepted) for the names "Angad Drone" and "Angad UAV" under different trademark classes.

​

Note: Currently this product is only available on special orders, and is NOT available in the public domain due to safety reasons.

Angad v1 is Made on special requirements for Unique Drone Systems.

Angad v2 and v3 are my own personal projects.
